Valcourt

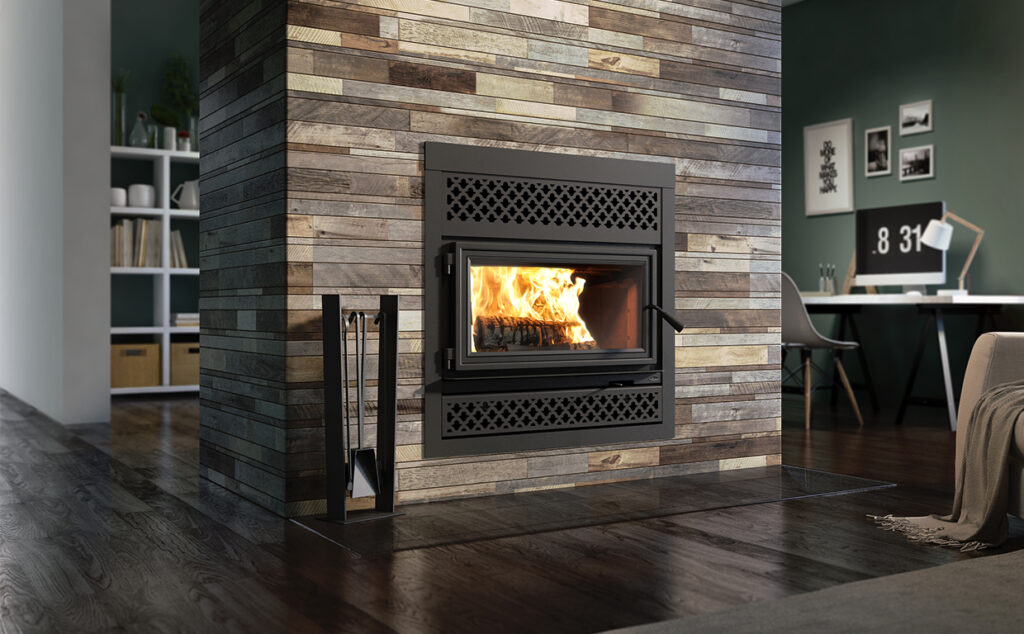

Model: FP10RS Lafayette IIS
The Lafayette IIS is the alternate-facing version of the Lafayette II — the same fireplace underneath, with a different face treatment to suit more traditional rooms.
Features
- Non-catalytic combustion technology
- EPA 2020 approved (high-efficiency certified appliance)
- C-Cast or equivalent baffle
- Single, glass with steel frame door
- Ceramic glass
- Glass air-wash system
- Moulded refractory bricks
- Stainless-steel secondary-air system improving gas combustion
- Limited lifetime warranty
Specifications
| Fuel type | Dry cordwood (16" recommended) |
|---|---|
| Recommended heating area-ft² | 750 - 2,200 |
| Overall firebox volume-ft³ | 2.5 |
| EPA loading volume-ft³ | 1.94 |
| Maximum burn time | 8 h |
| Maximum heat output-dry cordwood | 80,000 BTU/h (23.4 kW) |
| Overall heat output rate < | 12,700 BTU/h (3.72 kW) to 60,700 BTU/h (17.79 kW) |
| Average overall efficiency (dry cordwood) | 64% (HHV) / 68% (LHV) |
| Optimum efficiency | 70% |
| Optimum heat transfer efficiency | 68% |
| Average particulate emissions rate | 1.2 g/h |
| Average CO | 98 g/h |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 20" |
| Log positioning | Loading over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 15' |
| Baffle type | C-Cast or equivalent |
| Shipping Weight | 495 lb (225 kg) |
| Door type | Single, glass with steel frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 23 7/8" X 10 1/2" |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 176 |
| Overall dimension (Height) | 40 5/8" |
| Overall dimension (Width) | 36 3/4" |
| Overall dimension (Depth) | 28 5/8" |
| Door opening – dimension (Height) | 10 1/2" |
| Door opening - dimension (Width) | 25 3/8" |
| Firebox – dimension (Height) | 12 1/8" |
| Firebox – dimension (Width) | 20 3/8" |
| Firebox – dimension (Depth) | 13" |
| Moulded refractory bricks | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 127 |
| Canadian standard (safety) | ULC-S610 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
